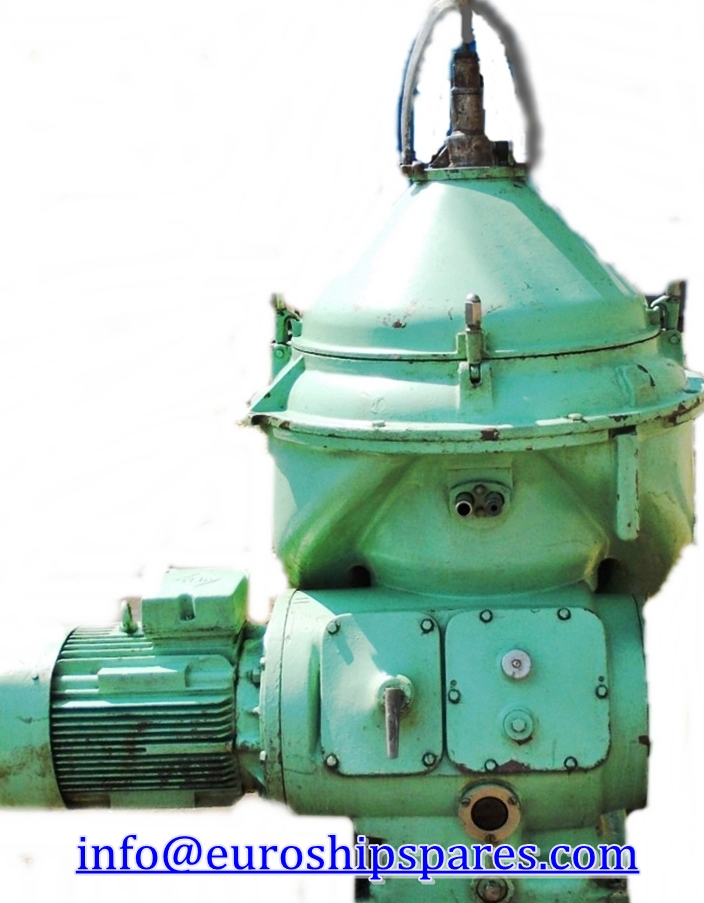

ALFA LAVAL FOPX 610 TFD 24 SEPARATOR
| Make | ALFA LAVAL, MADE IN ITALY |
| Type | FOPX 610 TFD 24 |
| Serial No. / Year | 4097640 / 1997 |
| Product No. | 881244-03-03 |
| Machine Top Part | 561012-01 |
| Bowl | 554048-04 |
| Machine Bottom Part | 540225-10 |
| Max Speed Bowl | 5148 |
| Speed Motor Shaft | 1800 |
| El. Current Frequency | 60 |
| Recommended Motor Power | 12KW |
| Max. Density of Feed | 1100KG/M3 |
| Max. Density of Sediment | 1350KG/M3 |
| Max. density of Operating Liquid | 1000KG/M3 |
| Process Temperature min/max | 0/100 OC |
